Micro 1GE XPON ONU

Description

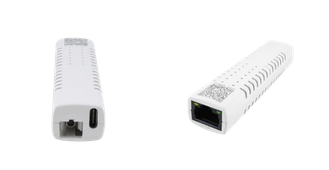

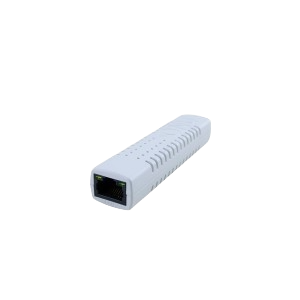

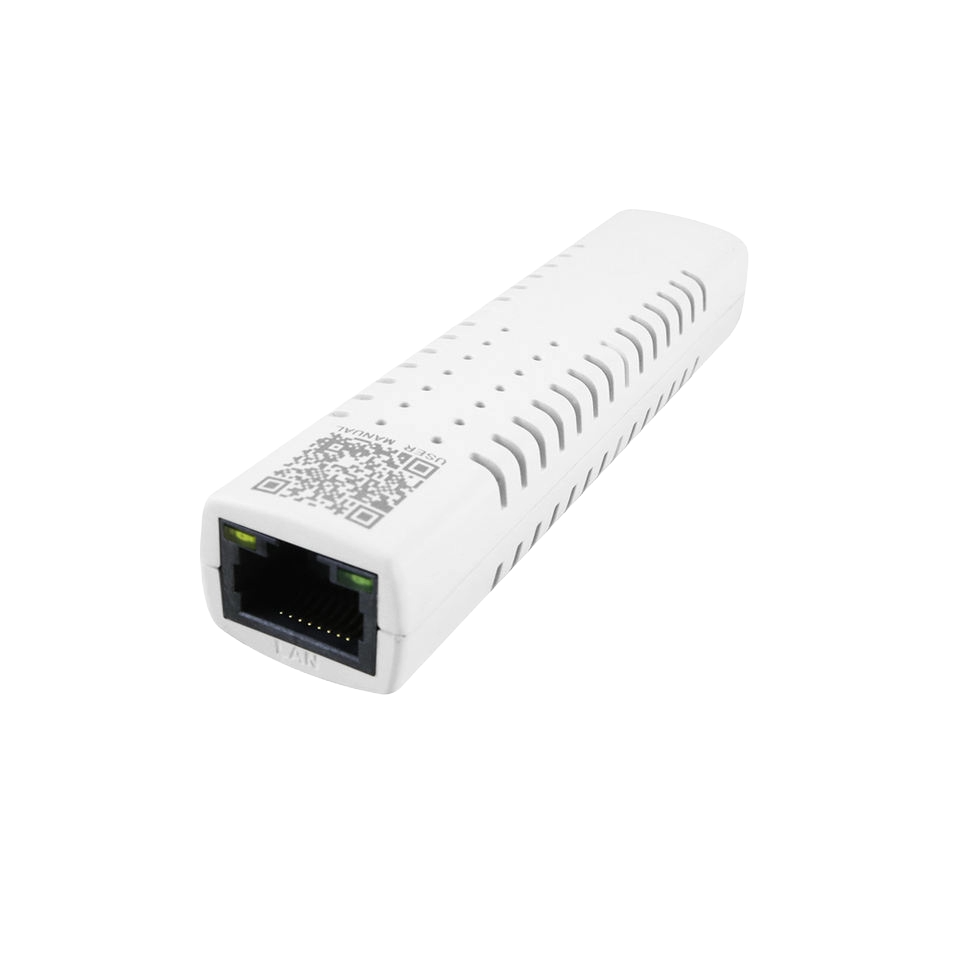

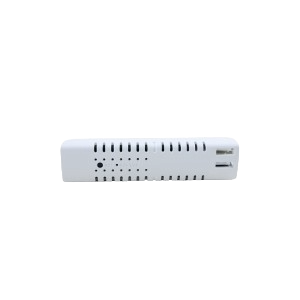

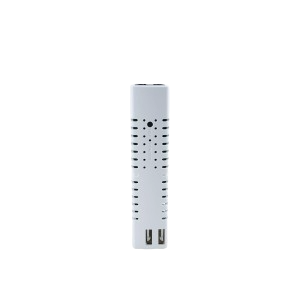

Micro ONU (Mini ONT) 1GE XPON – FTTH Optical Network Unit

The Micro ONU (Mini ONT) 1GE XPON is a compact and high-performance optical network terminal designed for modern FTTH (Fiber to the Home) broadband deployments. This carrier-class ONU provides reliable and high-speed data service access for residential and small business users.

Powered by a high-performance ZTE chipset, the Mini ONT ensures stable performance, low power consumption, and efficient fiber connectivity.

making it compatible with most FTTH infrastructure and OLT platforms.

With support for NGBN View NMS network management, the device allows service providers to remotely monitor, configure, and manage ONUs efficiently. Its ultra-compact design makes it suitable for installation in multiple environments such as homes, offices, and telecom network setups.

Although small in size, the Micro ONU delivers powerful networking capabilities, offering Gigabit Ethernet connectivity, advanced bandwidth control, VLAN support, and high-speed fiber access up to 20 km transmission distance.

Key Features

1GE Gigabit Ethernet Port for high-speed broadband access
Compact Micro ONU / Mini ONT design for easy installation
Supports Router mode (PPPoE / DHCP / Static IP)
Compatible with ITU-T G.984 GPON standard
Up to 20KM transmission distance
Supports IPv4 & IPv6 networking
Dynamic Bandwidth Allocation (DBA) for optimized performance
Supports VLAN separation and broadcast storm protection
Remote management via SNMP / NMS / Telnet / HTTP
Auto-discovery and remote software upgrade support
Low power consumption with Type-C power interface

Hardware Specifications

Item	Parameter
PON Interface	1 × XPON Optical Interface
Standard	Class B+
Transmission Speed	Upstream 1.244Gbps / Downstream 2.488Gbps

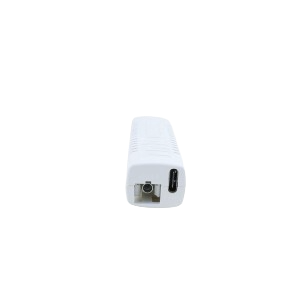

Fiber Connector	SC-UPC Single Mode Fiber
Split Ratio	1:128
Transmission Distance	Up to 20KM

Ethernet Interface

Item	Details

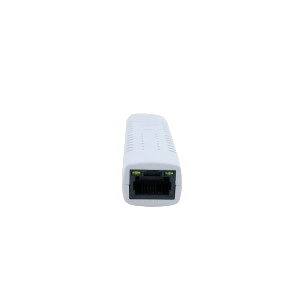

LAN Port	1 × 10/100/1000 Mbps Auto-Negotiation
Connector	RJ45
Duplex Mode	Full / Half Duplex
Distance	Up to 100 meters

Optical Parameters

Parameter	Value
TX Wavelength	1310 nm
RX Wavelength	1490 nm
TX Optical Power	0.5 ~ +5 dBm
RX Sensitivity	-27 dBm
Saturation Optical Power	-8 dBm
Fiber Type	9/125 μm Single Mode Fiber
Connector	SC-UPC

Network & Performance

Packet Loss Ratio: <1×10⁻¹²
Latency: <1.5 ms
Supports NAT / NAPT
Router and Bridge Mode Supported
WAN supports Internet connectivity
LAN supports DHCP and Static IP

Network Management

The Micro ONU supports advanced network management capabilities:

ITU-T G.984 OMCI protocol
Remote management via OLT
Telnet / HTTP local management
Status monitoring and configuration
Alarm management
System log monitoring

LED Indicators

Indicator	Status
PWR	Power status
LOS	Optical signal status
PON	ONU registration status
LINK/ACT	Ethernet link activity

Physical Specifications

Parameter	Value
Dimensions	92 × 21.5 × 17 mm
Weight	0.03 kg
Power Supply	5V 1A Type-C Adapter
Power Consumption	<2W

Environmental Specifications

Parameter	Range
Operating Temperature	-20°C to 70°C
Storage Temperature	-40°C to 85°C
Operating Humidity	10% – 90% (Non-condensing)
Storage Humidity	10% – 90% (Non-condensing)

Applications

The Micro ONU Mini ONT is ideal for:

FTTH broadband networks
Internet Service Providers (ISPs)
Residential fiber internet connections
Small office networking
Telecom fiber infrastructure deployments

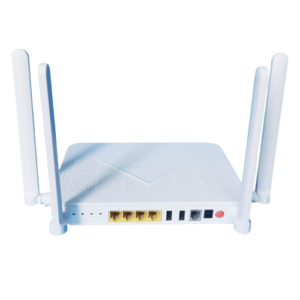

WIFI 6 Router Dualband ONU XPON WiFi AX3000 4GE
