Description
🚀 Overview:
HT-VOLT32 is a Mini GPON OLT Stick designed for rapid network transformation from traditional to all-optical networks. Built in an SFP+ form factor, it’s a perfect solution for small ISP deployments, CCTV projects, and home fiber networks.
🔧 Key Features:

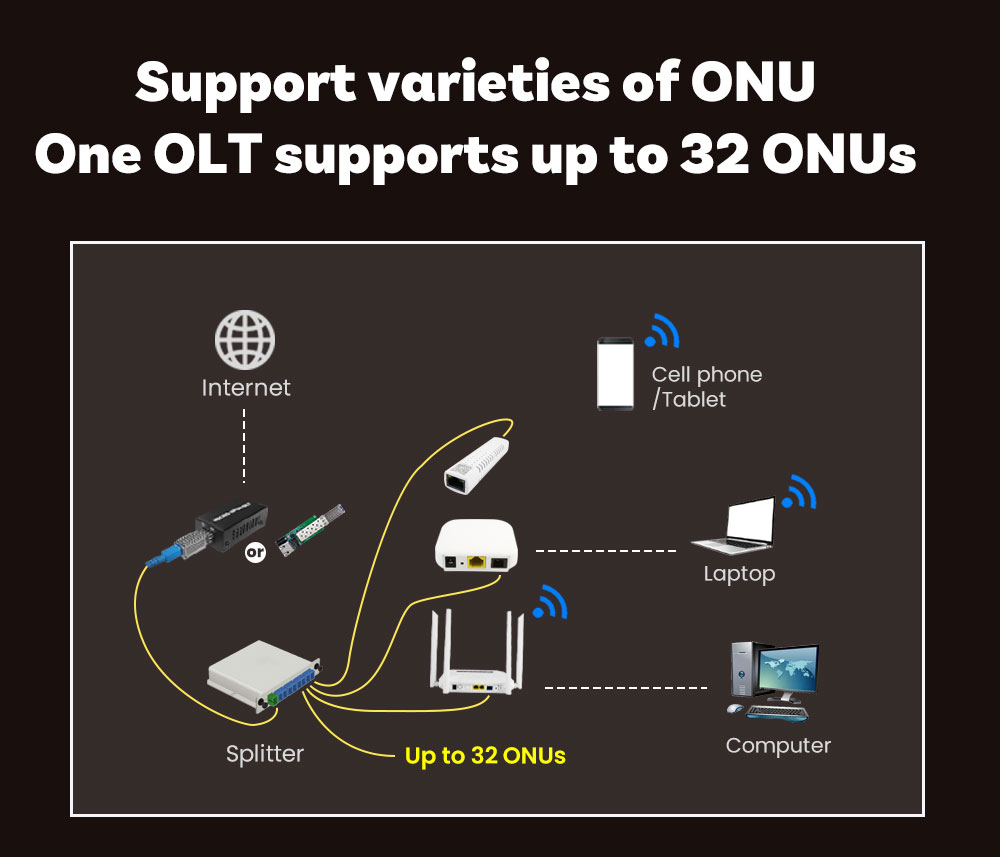

- 32 ONU Capacity: Supports up to 32 connected ONUs simultaneously.
- High-Speed Transmission: Downlink at 2.5Gbps and uplink at 1.244Gbps.
- 2dbm Output Power: SC/UPC interface for GPON fiber connectivity.
- 8KM Coverage: Ideal for compact city or rural rollouts.
- Plug & Play: No complex setup – works out of the box.
- Transparent VLAN: Supports pure bridge mode, SVLAN, and CVLAN.
- Broad Compatibility: Works with any brand of XPON or GPON ONU.
- PC Management Software: Easily manage OLT and registered ONUs without network expertise.
- Rugged Design: Operates between -40°C to 85°C, and 5% to 95% humidity.
- Low Power: Consumes less than 2.5W.
💻 Interface:

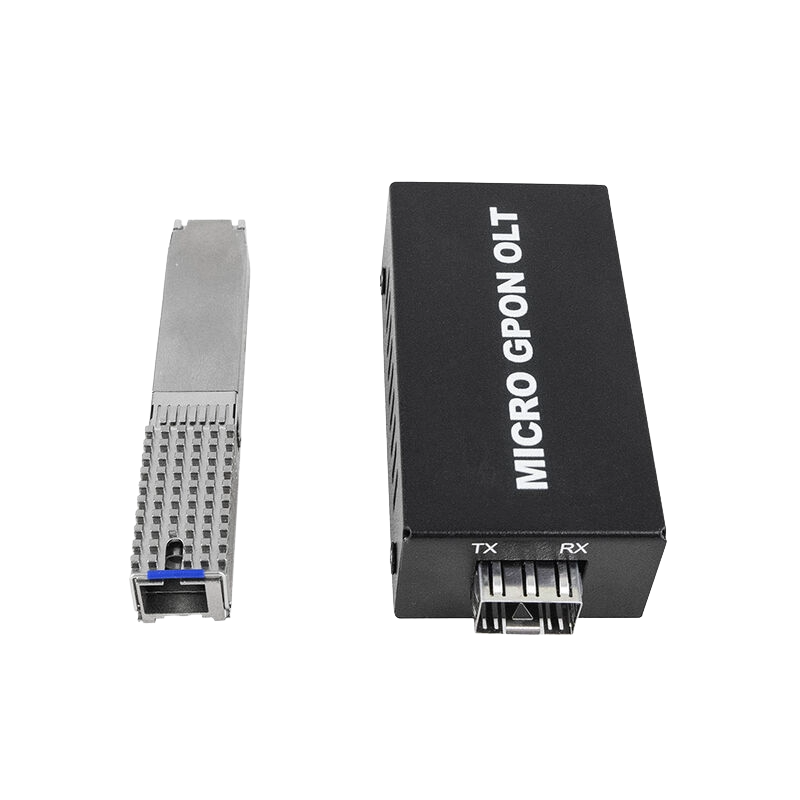

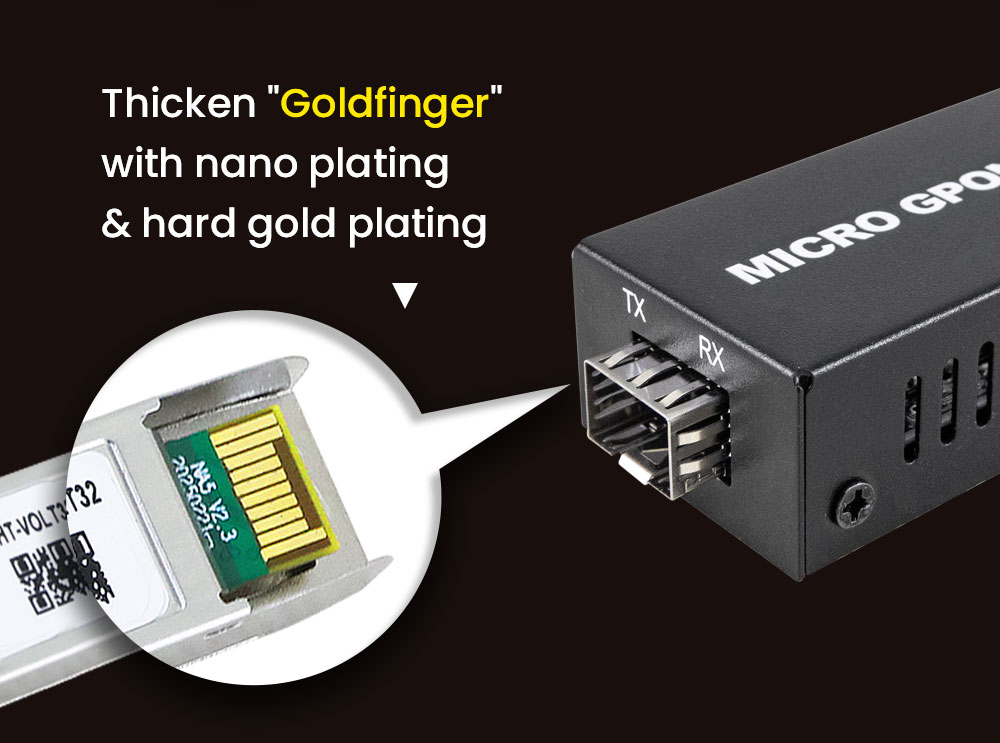

- Form Factor: SFP+
- Optical Port: SC UPC
- Supports: Hot-plugging
- Compatibility: Fully compatible with third-party switches, firewalls, and routers
📦 Included:
- 1x MINI GPON OLT Stick (HT-VOLT32)
- Free management software (Windows PC)
- User manual
https://youtu.be/Ur65VD4-zhk
