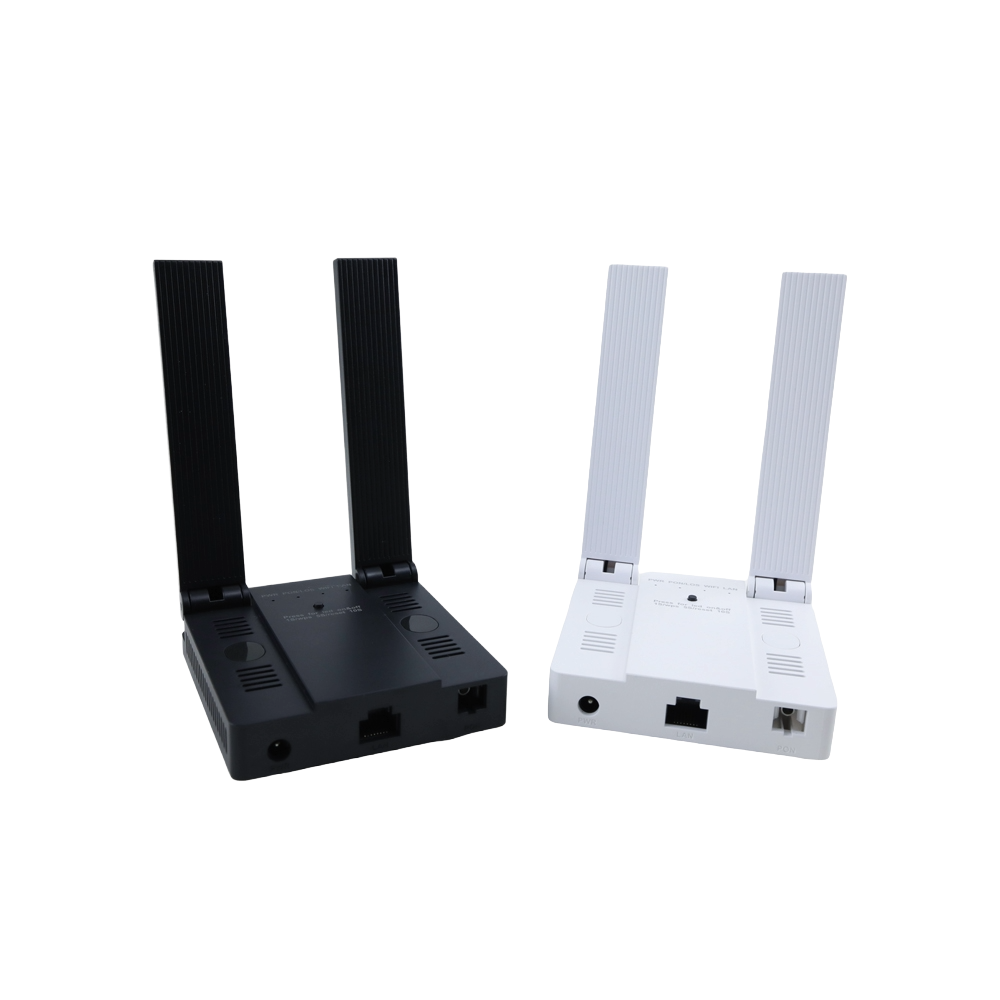

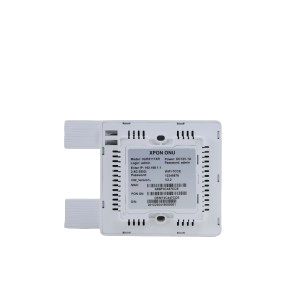

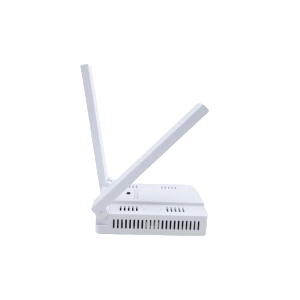

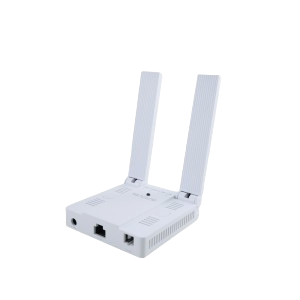

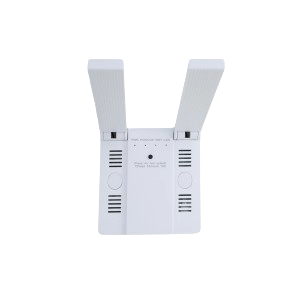

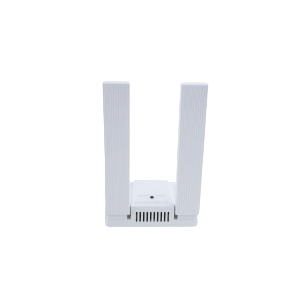

Micro WiFi ONT – XPON ONU 1GE + 2.4G Wireless FTTH Router

Description

Micro WiFi ONT XPON ONU 1GE + 2.4GHz Wireless FTTH Fiber Router | EPON GPON Compatible

• XPON technology with automatic EPON / GPON switching
• 1 × Gigabit Ethernet LAN port
• 2.4GHz WiFi (IEEE 802.11 b/g/n) wireless connectivity
• Compact Micro ONT design – ideal for wall or indoor installation
• Supports Router and Bridge mode
• Compatible with most EPON / GPON OLT brands
• IPv4 / IPv6 dual stack support
• TR069 remote management support for ISP provisioning
• IGMP Snooping / Proxy for IPTV services
• Built-in security firewall and network protection

Product Specifications

Optical Interface

• 1 × XPON port (EPON / GPON auto detection)
• Connector: SC/UPC
• Transmission distance: Up to 20 km
• Wavelength:
• TX: 1310 nm
• RX: 1490 nm

Ethernet Interface

• 1 × 10/100/1000 Mbps Gigabit LAN port
• RJ45 connector
• Auto-negotiation supported

Wireless Specifications

• Wireless standard: IEEE 802.11 b/g/n
• Frequency band: 2.4 GHz
• Wireless speed: Up to 300 Mbps
• Supports multiple SSID

Software Features

• Supports PPPoE / DHCP / Static IP routing mode
• Bridge mode and Router mode supported
• DHCP Server configuration
• Port forwarding / NAT support
• IGMP Snooping / Multicast support for IPTV
• Remote management via TR069

Hardware

• LED Indicators: Power, PON, LOS, LAN, WiFi
• Buttons: Reset / WPS

Power & Environment

• Power Supply: DC 12V / 1A
• Power Consumption: ≤ 6W
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -30°C to 60°C

Applications

Micro WiFi ONT is widely used in FTTH fiber optic networks and supports:

• High-speed broadband internet
• IPTV / multicast streaming
• Wireless home networking
• ISP fiber broadband deployment

Package Contents

• 1 × Micro WiFi ONT (XPON ONU)
• 1 × Power Adapter
• 1 × User Manual
